Pupil Activity

Which material would have been most suited for covering aeroplane wings during the First World War?

DISCUSSION WITH PUPILS: Before modern synthetic materials were invented, aeroplanes were often covered with fabrics. Some early aircraft even used paper as a covering material!

Now tell pupils that they are going to design a fair test to investigate which material is most suitable for the covering of aircraft wings. Ask the pupils in small groups to think about and discuss what properties of materials would be important. Responses from pupils may include such things as:

• Weight - necessary to be light for flight and linen is light;
• Durability/hardwearing - to survive stormy conditions but despite this the linen on the wings had to be replaced approximately every 12 flights;
• Flexibility – it could be readily moulded without breaking over the structure of the wings;
• Strength of the fabric - so that the fabric did not disintegrate easily;
• Waterproofness – necessary for different weather conditions. How was the linen protected? Refer to the doping of the linen. (See Resource 2.16 and accompanying audio, the use of linen during World War 1). The fibres in linen also became stronger when they were wet; and/or
• Readily available and low cost - flax was widely grown in Ulster and by 1914 linen was industrialised and no longer a cottage industry so the mills could make large amounts of the cloth with relatively cheap labour.

Plan

1. Ask the pupils to come up with ideas about how they could explore the properties of linen and other fabrics which were available at that time such as wool, paper and cotton;
2. In small groups, ask the pupils to discuss what they need to do. When they have completed their discussion, take feedback and draw up a class plan for the investigation; and
3. Discuss with the pupils what a fair test is. Ask the pupils for their ideas of what should be kept the same in the experiment in order to test the materials fairly.

Safety Note: Always carry out a risk assessment and follow your school’s policy on Health and Safety.

Ideas for properties to test

• Use weights to investigate the strength of linen when wet and dry and compare with the other fabrics;
• Use a ruler or measuring tape to investigate the elasticity of linen when wet and dry when compared with the other fabrics;
• Use materials stretched over jars to investigate the waterproofness of linen when compared with the other fabrics; and
• Test the durability of linen when compared with the other fabrics by scratching it with an object such as a stone.

Suggested equipment: (pupils should be encouraged to suggest equipment themselves)

• Four samples of fabric per group, linen, cotton, wool and paper;
• rulers or measuring tapes;
• elastic bands;
• water;
• pipette;
• jars;
• weights;
• scissors; and
• object with a rough surface, for example a stone.

Decide what to do: Pupils should decide in their groups how they are going to carry out a fair test. Remind them to identify which variables will remain the same and which one will change.

Record results: Pupils may record the results of their fair tests by using Resource 2.15: Which material would have been most suited for covering aeroplane wings during the First World War?.

Feedback: Pupils should present their findings to the whole class on the outcomes of their fair tests. How did pupil results compare to their predictions?

After completion of this investigation you may wish pupils to listen to an audio clip about the use of linen during World War 1.

Now listen to the audio again but this time distribute Resource 2.16: Listening Cards and ask pupils to make short notes to answer each of the questions.

1. What was linen and linen thread used for?
   Answers: Knapsacks, gas masks, to stitch tents together, to cover aeroplane wings.
2. Why do you think that the cloth on the wings would have to be replaced ‘every twelve flights or so’?
   Discuss with pupils the fact that aircraft were damaged due to bombings and shrapnel and the pilots needed to be kept as safe as possible.
3. What work did Andrew’s Mill do the most of according to the diary entry made in January 1916?
   Answer: They mainly produced aeroplane cloth.
4. Listen for the word ‘dope’. What do you think it was and what was its purpose?
   This question provides an opportunity to discuss with pupils how fabric can be made more rigid and waterproof.

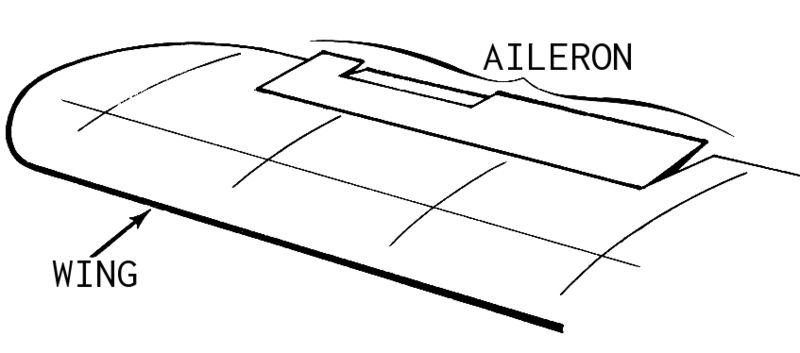

5. Listen for the word ‘aileron’ in the audio and write down what you think it is.
   This question provides an opportunity to explain to pupils that the ailerons caused the aeroplane to move up or down, see illustration below.

Now ask pupils to draw the design on the aeroplane wing.

Compare the designs by displaying Resource 2.17: Bristol Fighter Aeroplane (IWB).
